2.5mm Passive Probe

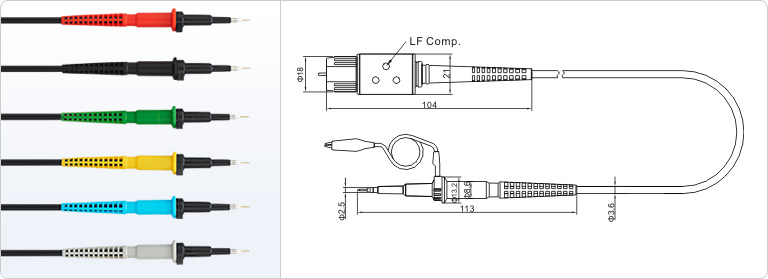

300MHz~500MHz Readout Passive Probe TX6500A Series

MODEL	TX6530A	TX6540A	TX6550A
Atten.Ratio	X10	X10	X10
Bandwidth (MHz@3dB)	300	400	500
Rise-time (ns)	1.16	0.875	0.7
Input Res. (ohM)	10M	10M	10M
Input Cap. (pF)	10	10	10
Comp.Range (pF)	10~30	10~30	10~30
Max. Input Volt.	300VDC+pkAC
Safety	Conformed IEC-61010 CATI & CAT II
Cable Length	1.3m

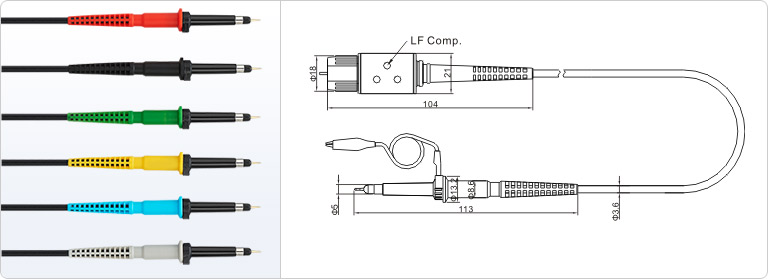

300MHz~500MHz Readout Passive Probe TX6500B Series

MODEL	TX6530B	TX6540B	TX6550B
Atten.Ratio	X10	X10	X10
Bandwidth (MHz@3dB)	300	400	500
Rise-time (ns)	1.16	0.875	0.7
Input Res. (ohM)	10M	10M	10M
Input Cap. (pF)	10	10	10
Comp.Range (pF)	10~30	10~30	10~30
Max. Input Volt.	300VDC+pkAC
Safety	Conformed IEC-61010 CATI & CAT II
Cable Length	1.3m

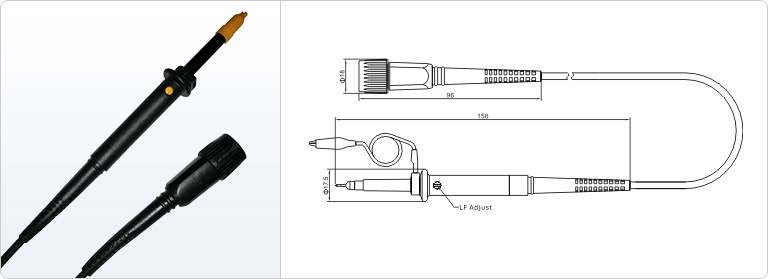

300MHz~500MHz Passive Probe PK8000 Series（only for china)

MODEL	PK8300	PK8400	PK8500
Atten.Ratio	X10	X10	X10
Bandwidth (MHz@3dB)	300	400	500
Rise-time (ns)	1.16	0.875	0.7
Input Res. (ohM)	10M	10M	10M
Input Cap. (pF)	12	12	12
Comp.Range (pF)	10~35	10~35	10~35
Max. Input Volt.	300VDC+pkAC
Safety	Conformed IEC-61010 CATI & CAT II
Cable Length	1.3m
