Oscilloscope Passive probe

High voltage X100 Passive Probe

60MHz~250MHz High-Voltage Passive Probe 100:1 TX3100A Series

MODEL	TX3106A	TX3110A	TX3125A
Atten.Ratio	X100	X100	X100
Bandwidth (MHz@3dB)	60	100	250
Rise-time (ns)	5.8	3.5	1.4
Input Res. (ohM)	100M	100M	100M
Input Cap. (pF)	6.5	6.5	6.5
Comp.Range (pF)	10~35	10~35	10~35
Max. Input Volt.	1200VDC+pkAC
Safety	Conformed IEC-61010 CATII
Cable Length	1.35m

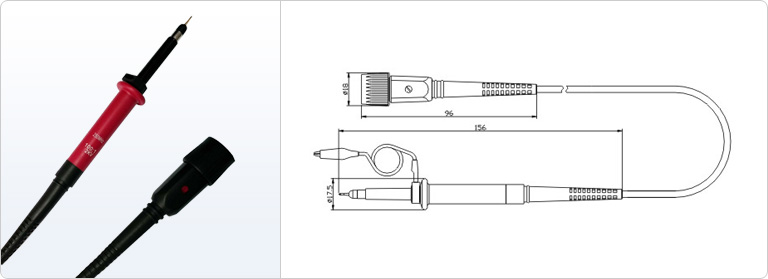

60MHz~250MHz High-Voltage Passive Probe 100:1 TX3200A Series

MODEL	TX3206A	TX3210A	TX3225A
Atten.Ratio	X100	X100	X100
Bandwidth (MHz@3dB)	60	100	250
Rise-time (ns)	5.8	3.5	1.4
Input Res. (ohM)	100M	100M	100M
Input Cap. (pF)	6.5	6.5	6.5
Comp.Range (pF)	10~35	10~35	10~35
Max. Input Volt.	2000VDC+pkAC
Safety	Conformed IEC-61010 CATII
Cable Length	1.35m
