High Voltage X1000 Passive Probe

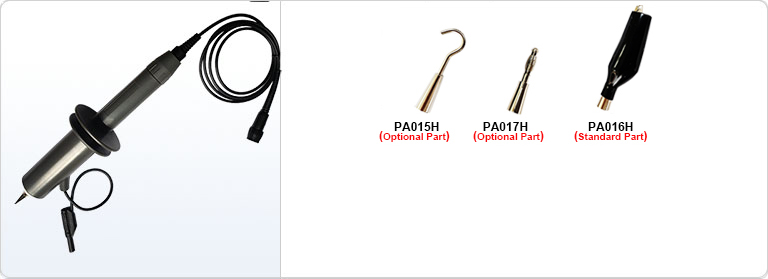

5KV~20KV High-Voltage Passive Probe 1000:1 HVP3300 10MHz Series
Note:If the parameters of the high-voltage probe are changed, no further notice will be given. The above parameters are for reference only, and the actual product shall prevail. The probe is suitable for the IEC61010-2-031 standard. The input voltage is 5KV~20KV.Please do not connect the probe to a high-voltage signal source for a long time when using it.The attenuation ratio of this probe is 1000:1, and it is suitable for a bandwidth of 10MHz.

MODEL HVP3305 HVP3310 HVP3315 HVP3320
Atten.Ratio X1000 X1000 X1000 X1000
Bandwidth (MHz@3dB) 10 10 10 10
Rise-time (ns) 35 35 35 35
Input Res. (ohM) 500M 500M 500M 500M
Input Cap. (pF) 3 3 3 3
Comp.Range (pF) 15~60 15~60 15~60 15~60
Max. Input Volt. 5KV DC AC Vpp 10KV DC AC Vpp 15KV DC AC Vpp 20KV DC AC Vpp
Safety Conformed IEC-61010
Cable Length 1.5m
TOP

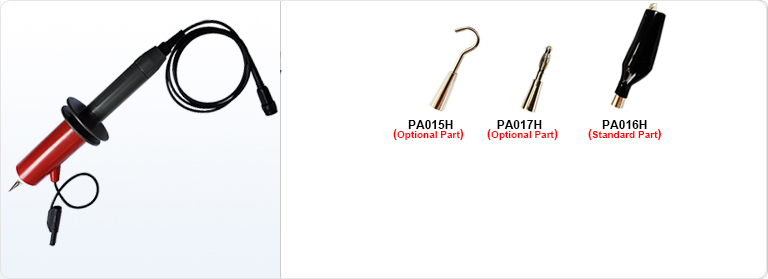

10KV~20KV High-Voltage Passive Probe 1000:1 HVP3300A 75MHz Series
Note: If the parameters of the high-voltage probe are changed, no further notice will be given. The above parameters are for reference only, and the actual product shall prevail. The probe is suitable for the IEC61010-2-031 standard. The input voltage is 10KV~20KV.Please do not connect the probe to a high-voltage signal source for a long time when using it.The attenuation ratio of this probe is 1000:1, and it is suitable for a bandwidth of 75MHz.
MODEL HVP3310A HVP3315A HVP3320A
Atten.Ratio X1000 X1000 X1000
Bandwidth (MHz@3dB) 75 75 75
Rise-time (ns) 4.67 4.67 4.67
Input Res. (ohM) 500M 500M 500M
Input Cap. (pF) 3 3 3
Comp.Range (pF) 15~60 15~60 15~60
Max. Input Volt. 10KV DC AC Vpp 15KV DC AC Vpp 20KV DC AC Vpp
Safety Conformed IEC-61010
Cable Length 1.5m
TOP

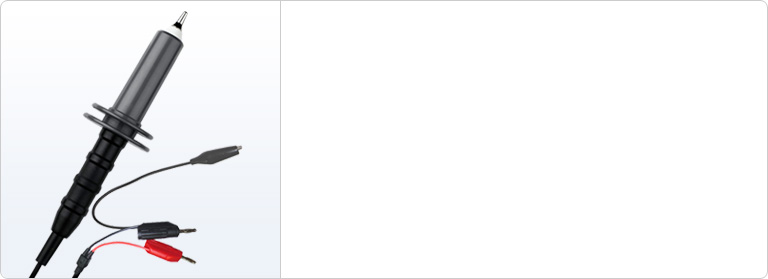

20KV~30KV High-Voltage Probe For DMM 1000:1 HVP3400 Series

* The HVP3400 is a 1000:1 divider probe for the measurement of high voltage signals. Up to 30kVDC , 30kV Vpp AC.

* The probe s large size and rugged construction provides superior protection.

* The ground lead is fed through the body of the probe and protrudes behind the safety barrier, keeping the ground connection away from the high voltage.

* Typical applications include PMT s motor drivers, high voltage switches, magnatrons and modern projection systems.

MODEL HVP3420 HVP3430
Atten.Ratio X1000 X1000
Input Res. (ohM) 1000M 1000M
Max. Input Volt. DC:0~20KV
AC:0~20KV Vpp		 DC:0~30KV
AC:0~30KV Vpp
Accuraccy DC: +/-5%
AC: +/-5%		 DC: +/-5%
AC: +/-5%
