Oscilloscope Passive probe

Readout Passive Probe

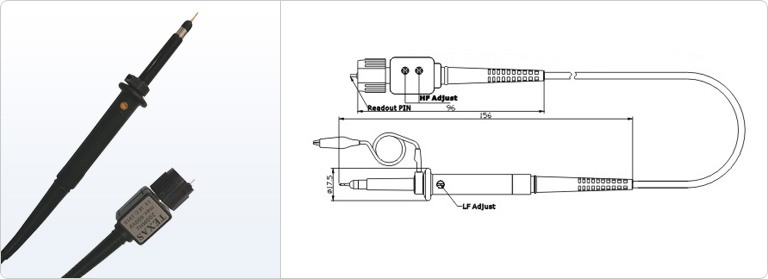

150MHz~300MHz Readout Passive Probe TX5100R Series

MODEL	TX5115R	TX5120R	TX5125R	TX5130R
Atten.Ratio	X10	X10	X10	X10
Bandwidth (MHz@3dB)	150	200	250	300
Rise-time (ns)	2.33	1.75	1.4	1.17
Input Res. (ohM)	10M	10M	10M	10M
Input Cap. (pF)	15	15	15	15
Comp.Range (pF)	10~35	10~35	10~35	10~35
Max. Input Volt.	600VDC+pkAC
Safety	Conformed IEC-61010 CATI
Cable Length	1.2m

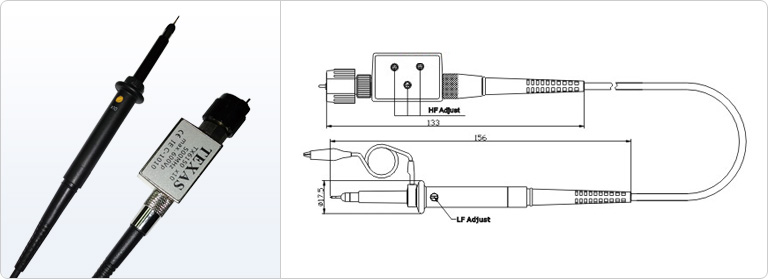

350MHz~500MHz Readout Passive Probe TX6100R Series

MODEL	TX6135R	TX6150R
Atten.Ratio	X10	X10
Bandwidth (MHz@3dB)	350	500
Rise-time (ns)	1	0.7
Input Res. (ohM)	10M	10M
Input Cap. (pF)	11	11
Comp.Range (pF)	10~35	10~35
Max. Input Volt.	600VDC+pkAC
Safety	Conformed IEC-61010 CATI
Cable Length	1.5m

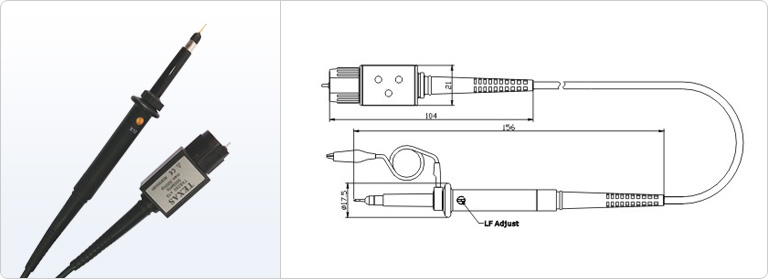

350MHz~500MHz Readout Passive Probe TX6200R Series

MODEL	TX6235R	TX6250R
Atten.Ratio	X10	X10
Bandwidth (MHz@3dB)	350	500
Rise-time (ns)	1	0.7
Input Res. (ohM)	10M	10M
Input Cap. (pF)	11	11
Comp.Range (pF)	10~35	10~35
Max. Input Volt.	300VDC+pkAC
Safety	Conformed IEC-61010 CATI
Cable Length	1.35m

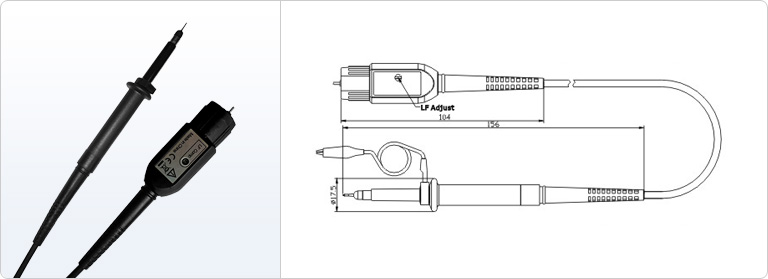

50MHz~500MHz Readout Passive Probe TX6400R Series

MODEL	TX6405R	TX6415R	TX6430R	TX6435R	TX6450R
Atten.Ratio	X10	X10	X10	X10	X10
Bandwidth (MHz@3dB)	50	150	300	350	500
Rise-time (ns)	7	2.33	1.17	1	0.7
Input Res. (ohM)	10M	10M	10M	10M	10M
Input Cap. (pF)	11	11	11	11	11
Comp.Range (pF)	5~30	5~30	5~30	10~35	10~35
Cable Length	1.2m			2.0m	1.3m
Max. Input Volt.	300VDC+pkAC
Safety	Conformed IEC-61010 CATII
